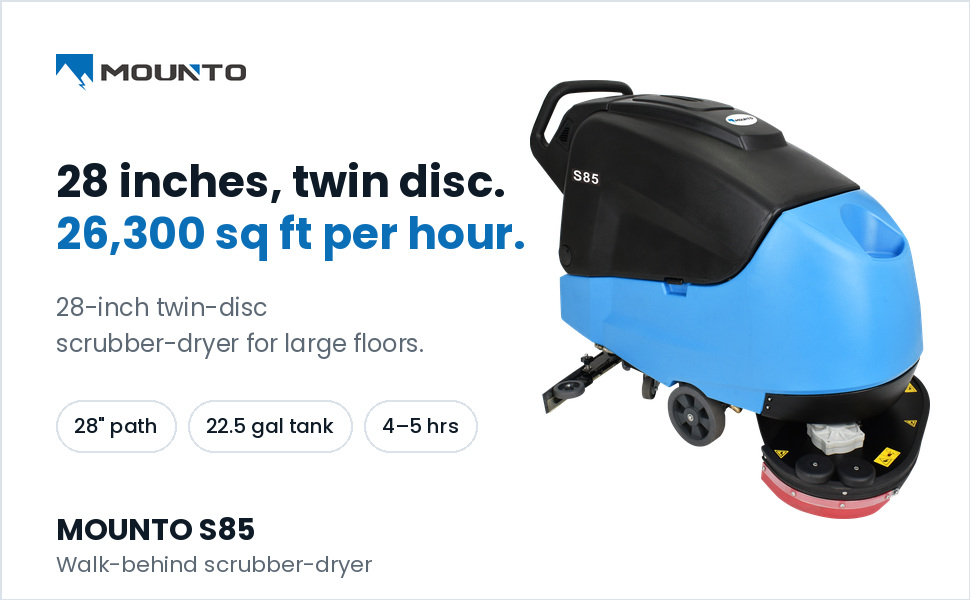

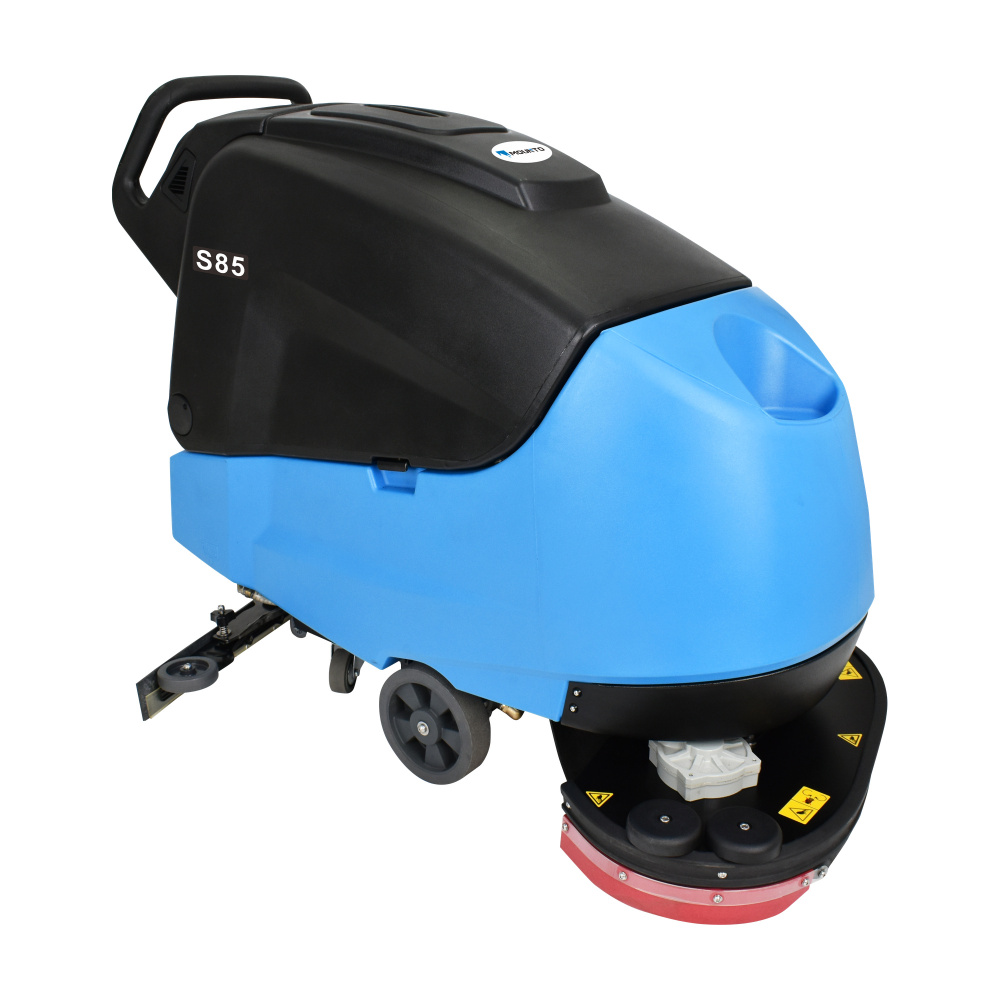

Twin discs, 28 inches, 26,300 sq ft an hour

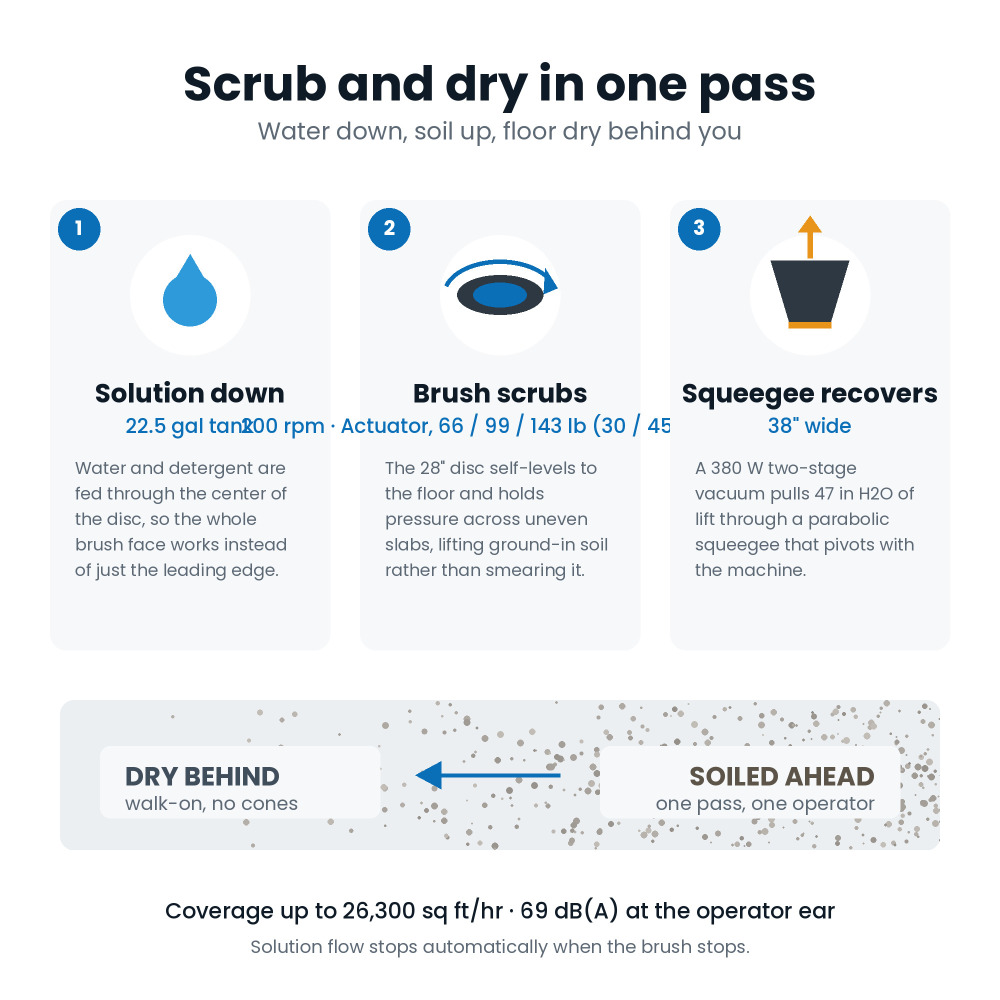

Two 500W motors drive counter-rotating 345 mm discs, so the machine tracks straight instead of pulling to one side, and a 38-inch steel squeegee recovers behind them. One operator covers the floor area that used to take a crew.
Set brush pressure from the panel
An electric actuator selects 66, 99 or 143 lb of down pressure without stopping. Light for daily maintenance on a finished retail floor, 143 lb for grease and tire marks on shop concrete.

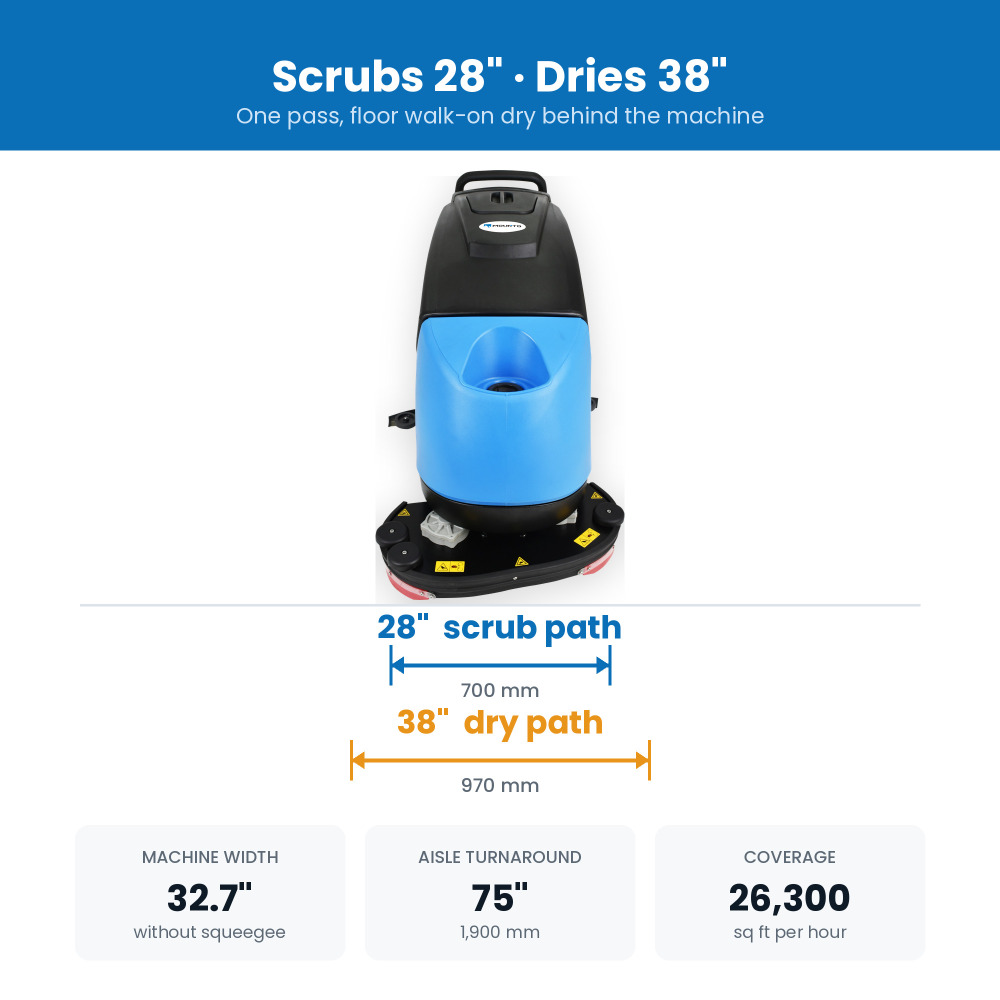

28-inch path
Two 13.6 in discs at 200 RPM, drying 970 mm behind, 26,300 sq ft/hr.
|
22.5 gallon tank
Plus a 25.1 gal recovery tank with electronic float and auto stop.
|

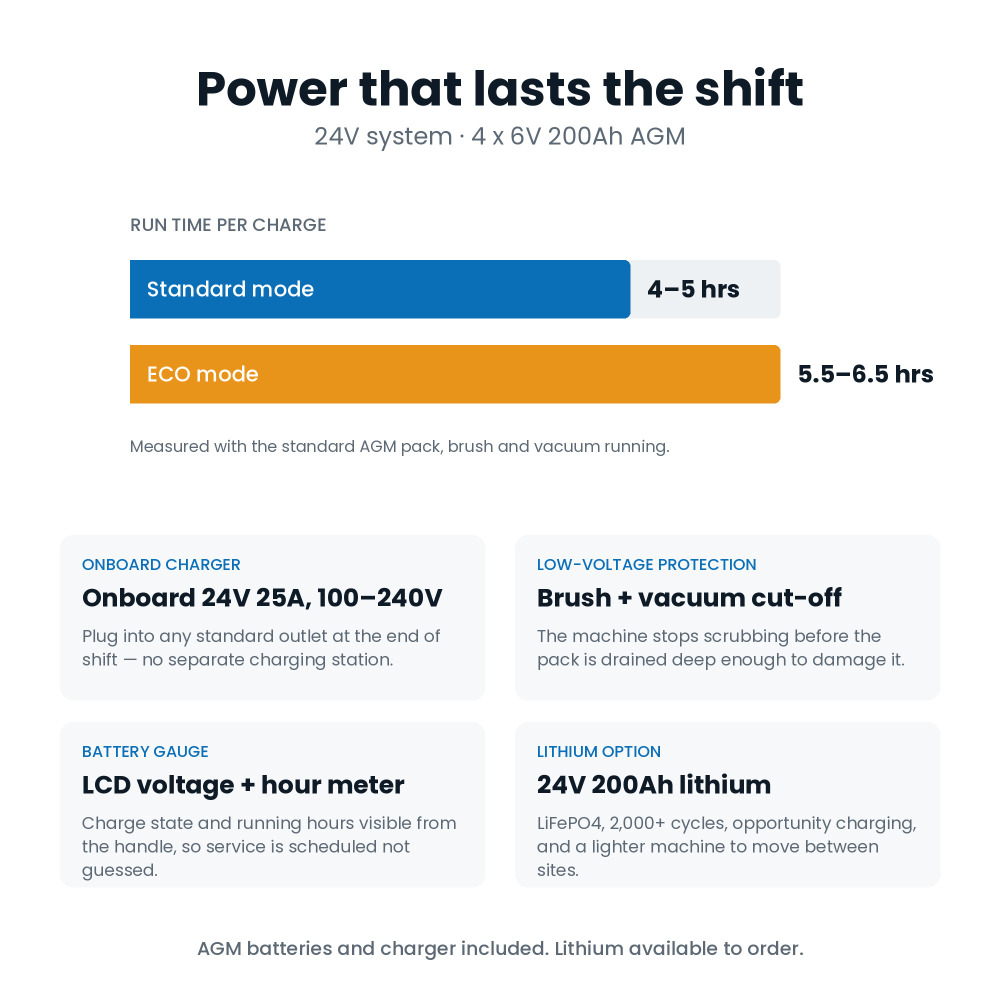

4–5 hours per charge
Four 6V 200Ah AGM batteries, 6.5 hours in ECO, 24V 25A charger.
|
2.2 mph drive
350W rear motor with electromagnetic service and parking brake.
|

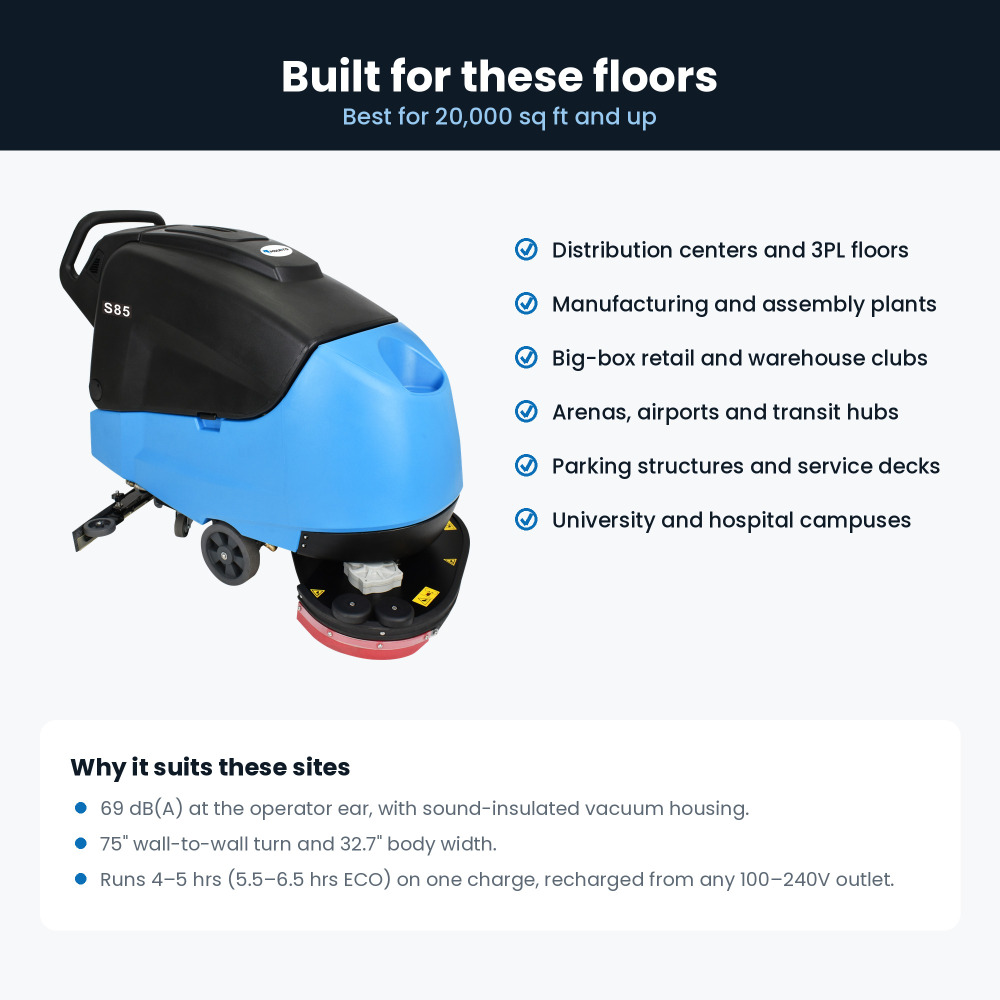

Where it works

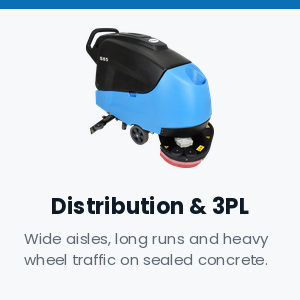

Distribution & 3PL
Wide aisles, long runs and heavy wheel traffic on sealed concrete.
|

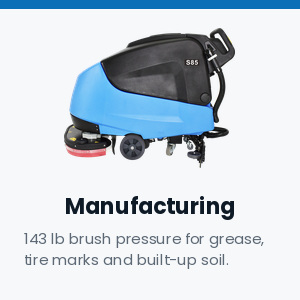

Manufacturing
143 lb brush pressure for grease, tire marks and built-up soil.
|
Public venues
Arenas, airports, transit hubs and campus buildings.
|

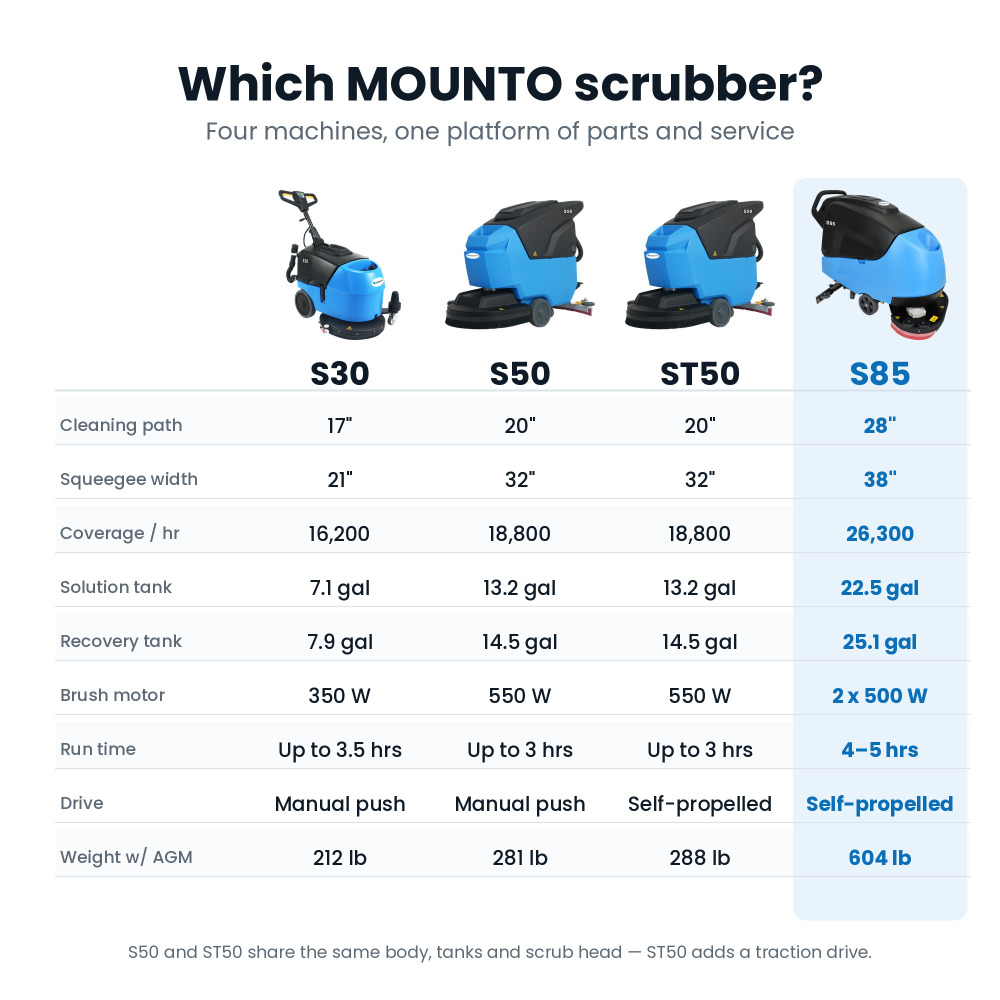

Compare the range
S30
1,000–10,000 sq ft
$3,299
|
S50
5,000–40,000 sq ft
$3,999
|
ST50
5,000–40,000 sq ft
$4,599
|
S85
20,000 sq ft and up
$8,999
|
Prices include LTL freight to a commercial address with a loading dock in the continental US.

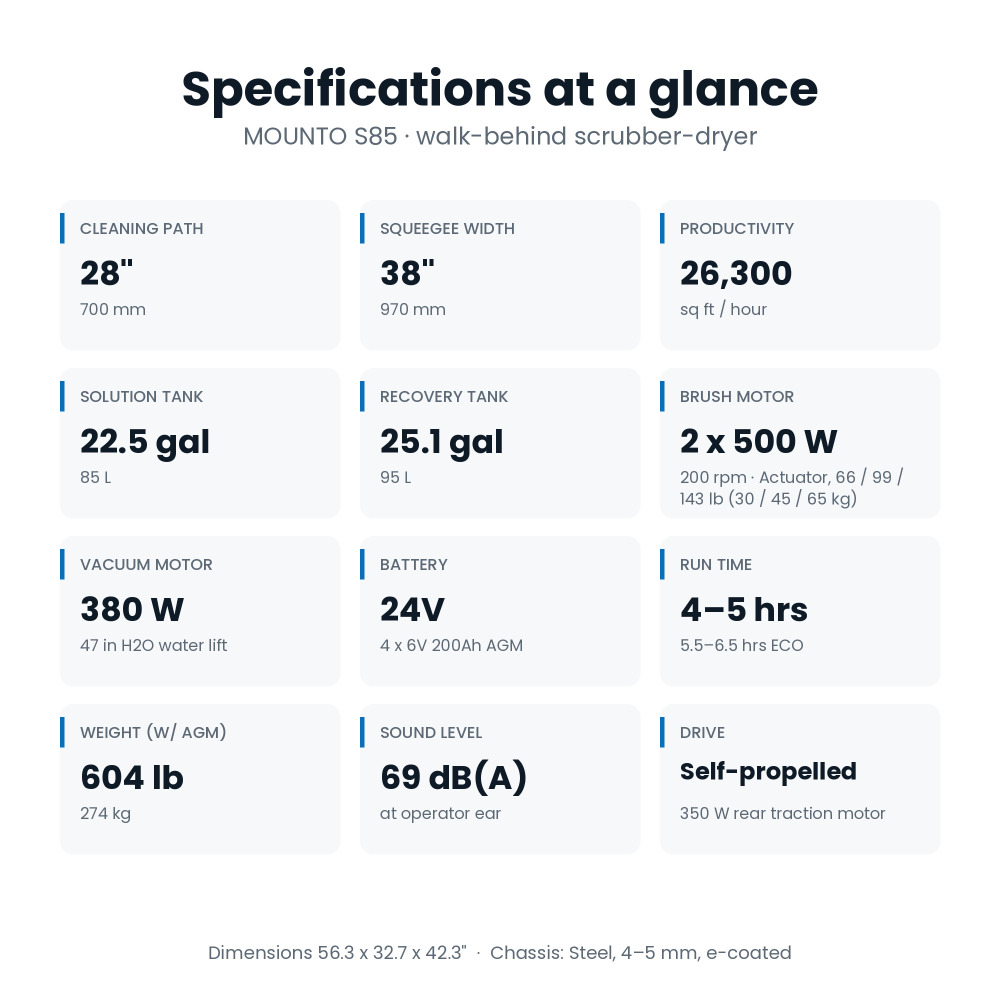

Technical specifications
| Cleaning path |
28" / 700 mm |
| Squeegee width |
38" / 970 mm |
| Productivity, max |
26,300 sq ft/hr |
| Solution tank |
22.5 gal / 85 L |
| Recovery tank |
25.1 gal / 95 L |
| Brush motor |
2 x 500 W, 200 rpm |
| Brush pressure |
Actuator, 66 / 99 / 143 lb (30 / 45 / 65 kg) |
| Vacuum motor |
380 W, 2-stage, 47 in H2O / 1,200 mm |
| Battery |
4 x 6V 200Ah AGM |
| Run time |
4–5 hrs (5.5–6.5 hrs ECO) |
| Charger |
Onboard 24V 25A, 100–240V |
| Drive |
Self-propelled |
| Aisle turn, wall to wall |
75" / 1,900 mm |
| Dimensions, L x W x H |
56.3 x 32.7 x 42.3" |
| Weight with batteries |
604 lb / 274 kg |
| Sound level |
69 dB(A) |
Shipping
- Ships on a pallet by LTL freight from Corona, California, in 1–2 business days.
- Freight included to a commercial address with a loading dock in the continental US.
- Liftgate or residential delivery costs extra — ask us before ordering.
- Inspect the pallet before signing and note any damage on the receipt.
|
In the box
Machine, two disc brushes, squeegee assembly with blades, AGM batteries installed, onboard charger, operator manual.
Replacement brushes, blades and filters are stocked in California. Questions: info@mounto.com or (626) 931-6268.
|
